Oil separators BP OLEX M/KF/P With Bypass

Oil separators BP OLEX M/KF/P With Bypass

Home Light Liquids Separators Oil separators with BYPASS Oil separators BP OLEX M/KF/P With Bypass

The treated water has sufficiant criteria to exit to the recipient of 2. category watercourses.
Guaranteed quantity of oil after the purification of waste water with the specified input parameters is to 5 mg/l.
They are designed to purify all waste water on scheduled area in the anticipated amount to 6,5 mm/h of rainfall. This quantity covers the most common usual amount of rainfalls.
During the first storm surge, the first rush of contaminated water pass through the separator, allowing the purification of waste water. As the rainfall increases, the amount of oil is significantly reduced and water flows into the recipient through bypass instead of through the filter. Flow through baypass is designed in the ratio 1:5.
They are used in places where can occur only a small contamination, for example, personal automobile parking, or when its deemed as an acceptable risk to not to give a full treatment of water at high flow rates. In other cases it is not accceptable to use oil separators with bypass.

NORM

EN 12255

USE

Car parking

EMBEDDING TYPE

Embedding in grass area and roadway

TECHNICAL DATA

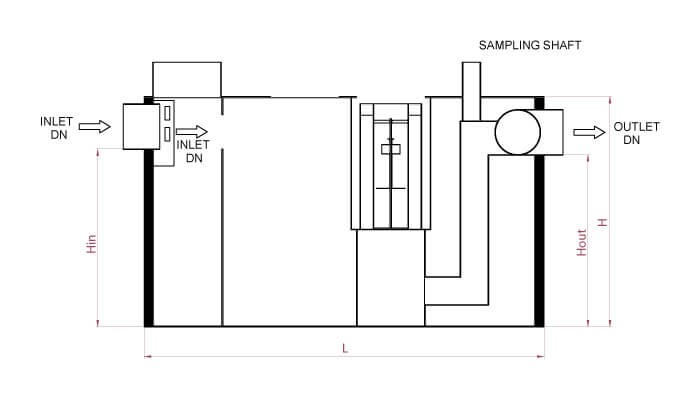

Type of Separators	Q (l/s)	L(mm)	B(mm)	H(mm)	Hin(mm)	Hout(mm)	DN(mm)	Weight(kg)
BP OLEX 3/15 M/KF/P	3/15	1500	750	2020	1760	1710	200	224
BP OLEX 6/30 M/KF/P	6/30	1500	1160	2020	1710	1660	250	276
BP OLEX 10/50 M/KF/P	10/50	2000	1160	2020	1660	1610	300	336
BP OLEX 15/75 M/KF/P	15/75	3000	1160	2020	1660	1610	300	454
BP OLEX 20/100 M/KF/P	20/100	3500	1160	2020	1660	1610	300	514
BP OLEX 30/150 M/KF/P	30/150	3500	1660	2020	1560	1510	400	607
BP OLEX 40/200 M/KF/P	40/200	3500	2160	2020	1560	1510	400	700
BP OLEX 50/250 M/KF/P	50/250	4000	2160	2020	1460	1410	500	774
BP OLEX 65/325 M/KF/P	65/325	4500	2160	2020	1460	1410	500	848
BP OLEX 80/400 M/KF/P	80/400	5500	2160	2160	1530	1480	500	1041
BP OLEX 100/500 M/KF/P	100/500	6000	2160	2560	1830	1780	600	1256
BP OLEX 125/625 M/KF/P	125/625	6500	2160	2560	1830	1780	600	1340
BP OLEX 150/750 M/KF/P	150/750	7000	2160	2760	1830	1780	800	1502
BP OLEX 200/1000 M/KF/P	200/1000	8000	2160	2760	1830	1780	800	1681
